DrivTech

Wireless Remote Control Light Switch 433Mhz 10A 100-240V Relay Controller Mini Round Button Wall Panel Switch For Led Lighting

Starts from

80

In Stock
Sku ADAE1005006702079975
Starts from

80

Add to cart

Description

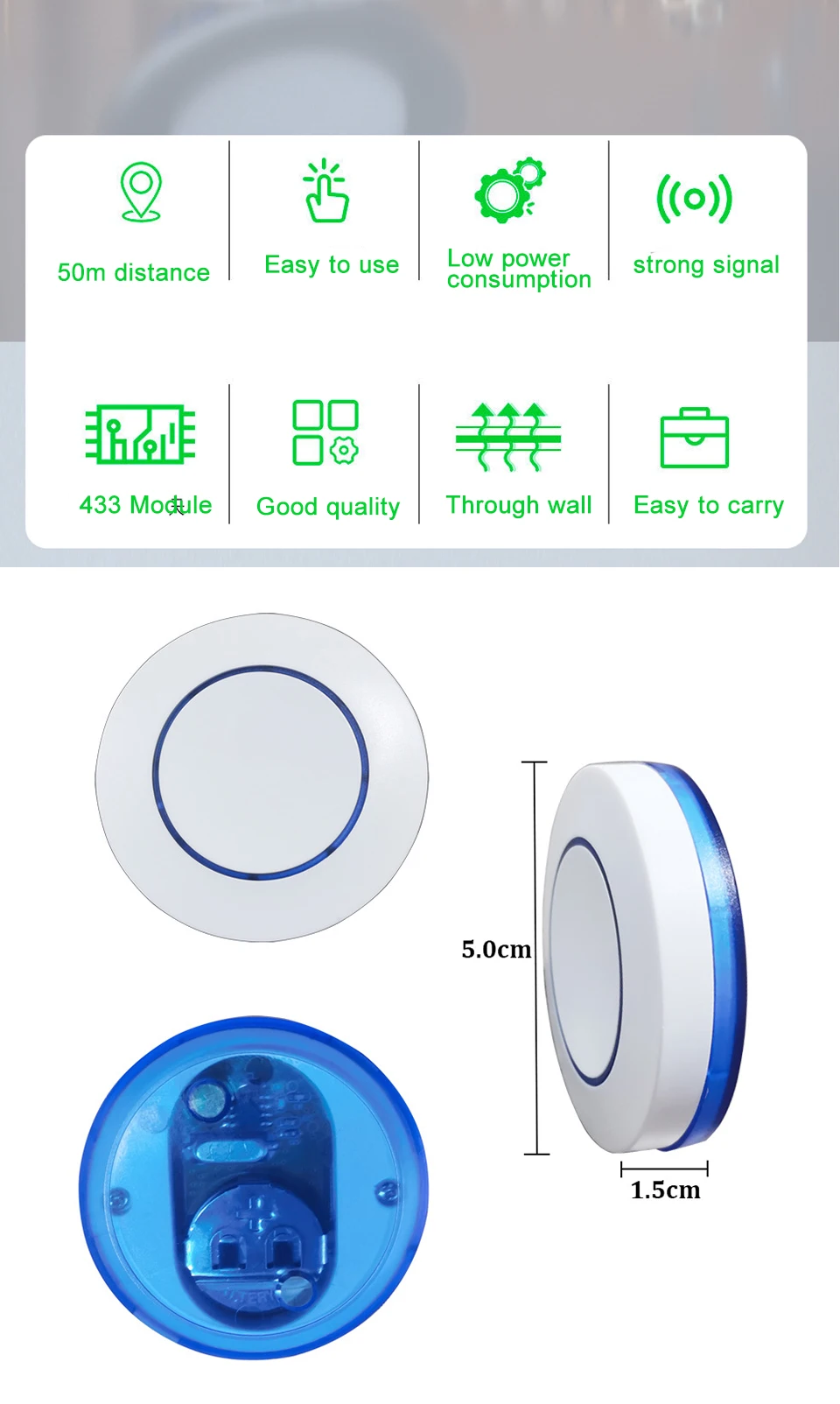

1. New mini round wireless panel switch(50mm*50mm*15mm)

2. 10A power: suitable for most equipment, safer to use

3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient

4. Up to 50 meters remote range.The more obstacles, the shorter the distance, the more serious the signal loss.

5. After turning off the power, turn on the power again, the device status is off.



Controller (Receiver)


1) Working voltage: AC85-240V 60HZ/50HZ
2) Working frequency: 433MHZ
3) Power consumption in standby mode: <0.3W
4) Load power: <1100W

5) Receiving sensitivity: -108dBM
6) Working way:wireless control
7) Coding way: learning code
8) Modulation: ASK
9) Working temperature: -10*C~+70"C
10) Size: 47.4*42*22.8 (mm)


Note:

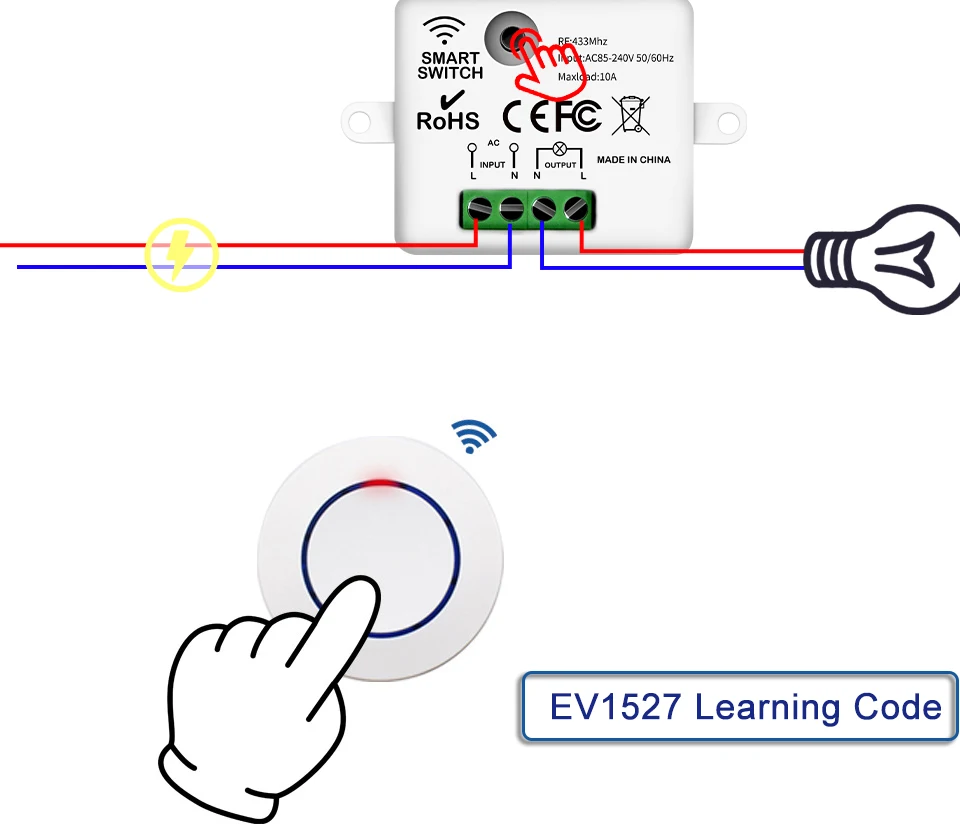

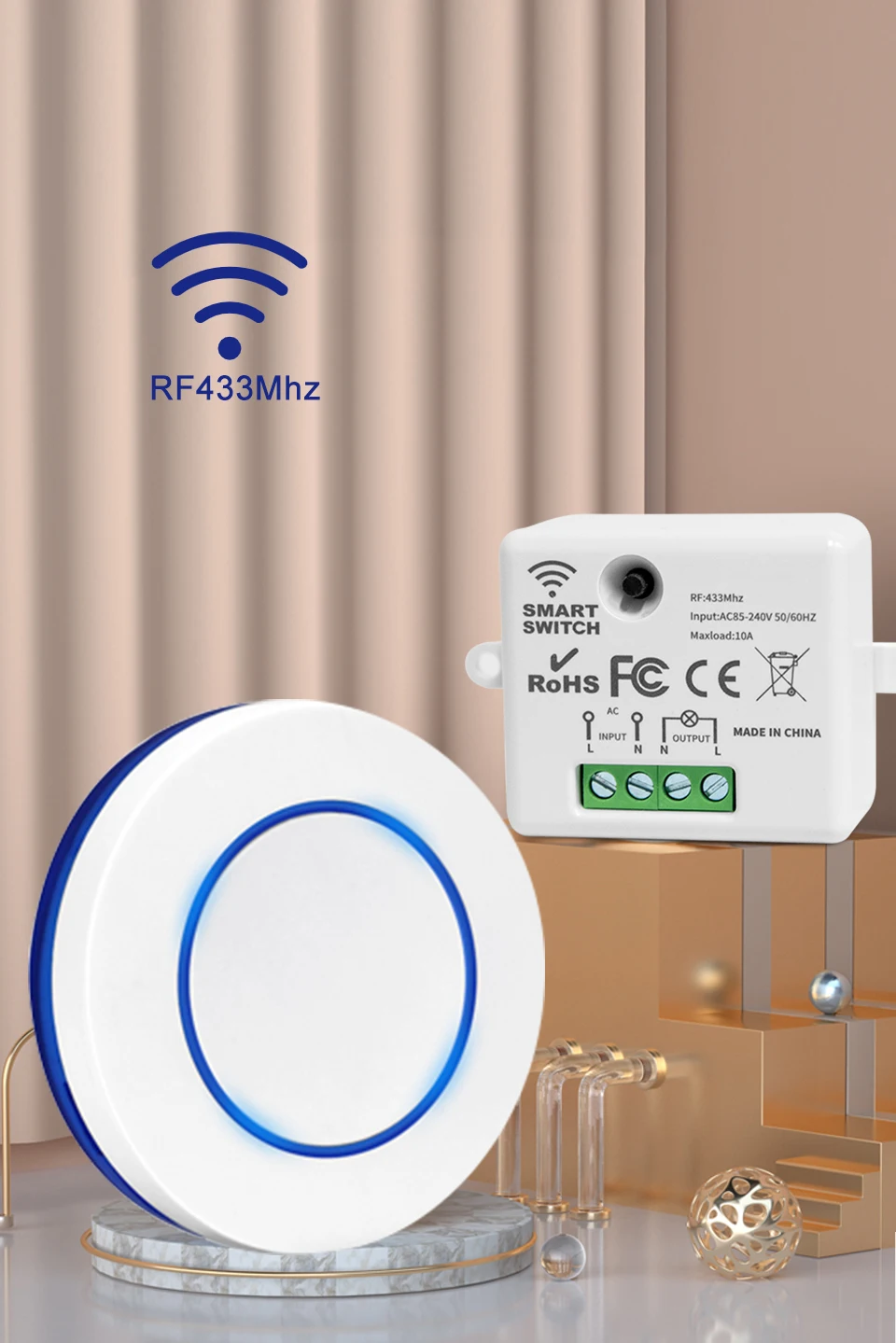

The relay controller is RF Receivers,the wall switch is RF only.Wall switch itself cannot control lights on off.It needs to work with rf receiver together.



Wireless Remote Control Light Switch 433Mhz 10A 100-240V Relay Controller Mini Round Button Wall Panel Switch For Led Lighting
Wireless Remote Control Light Switch 433Mhz 10A 100-240V Relay Controller Mini Round Button Wall Panel Switch For Led Lighting

80 SAR

Add to cart
